LeveAlert-Logo



"Click Here to Purchase On-Line"



Tank-With-LevAlerts

NO POWER REQUIRED!!!



See NBC North Dekota Report on

LevAlert - Click Here for Video

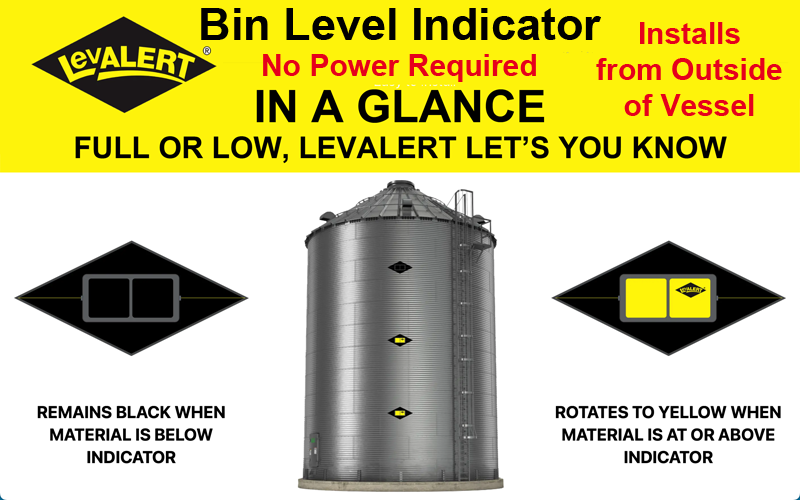

NonLevel



LevALERT® Showing No Material

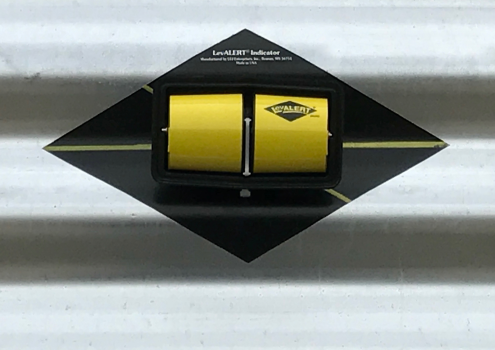

LevelAlarm



LevALERT® Showing Material

MadeInUSA



In Stock at

C A BRIGGS COMPANY

Or

CLICK HERE TO BUY ON-LINE

Specifications for model 760 LevALERT®

- Material Bulk Density Range: 15 and 100 lbs/ft3.

- Typical materials: Feeds, Grains, Plastic Pellets, Fertilizer, Minerals, Cement and Sand, the name a few.

- Easy Installation: LevALERT® mounts from outside vessel.

- Highly Visible: Florescent Yellow indication is visible from more than 200 feet, day or night.

- No Power Required: LevALERT®'s operation is completely mechanical and does not require power.

- Temperature Range: -30°F to + 150°F.

- Optional Indicating Sensor available for Alarm or Remote Indication.



Optional Sensor

MAgSensor



Model 59065-952 Electrical Sensor - SPDT Dry Switch capable switching of 20VA at 120VAC.  Simply Threads into LevALERT® body

Optional DPDT 10A Relay

Relay



Model MK2P-S-AC120 for 120VAC Input Power

Model MK2P-S-DC12 for 12VDC Input Power

Model MK2P-S-DC24 for 24VDC Input Power

LevALERT® PDF DataSheet

LevALERT® PDF Owners Manual
